Timing is everything, especially when it comes to engines. Whether you’re building a fire-breathing hot rod or setting up a workhorse for towing, getting the ignition timing curve right can mean the difference between performance and failure. It’s one of those details that often gets overlooked until something starts pinging, surging, or, worse, detonating.

Think of ignition timing like conducting an orchestra. Each cylinder needs to fire at precisely the right moment to keep everything in harmony. But unlike an orchestra, your engine doesn’t keep the same tempo throughout the performance. The ignition system needs to change when and how it fires as RPMs rise and load conditions change.

That’s where timing curves come into play. Hot rods and towing rigs might both run V8s, but their needs are drastically different when it comes to ignition timing.

What Is An Advance Curve?

When you hear someone talk about advance curves, they’re referring to how ignition timing increases with engine speed. The spark needs to happen sooner at higher RPMs because the piston is moving faster. The timing curve defines how quickly and how much that advance is brought in.

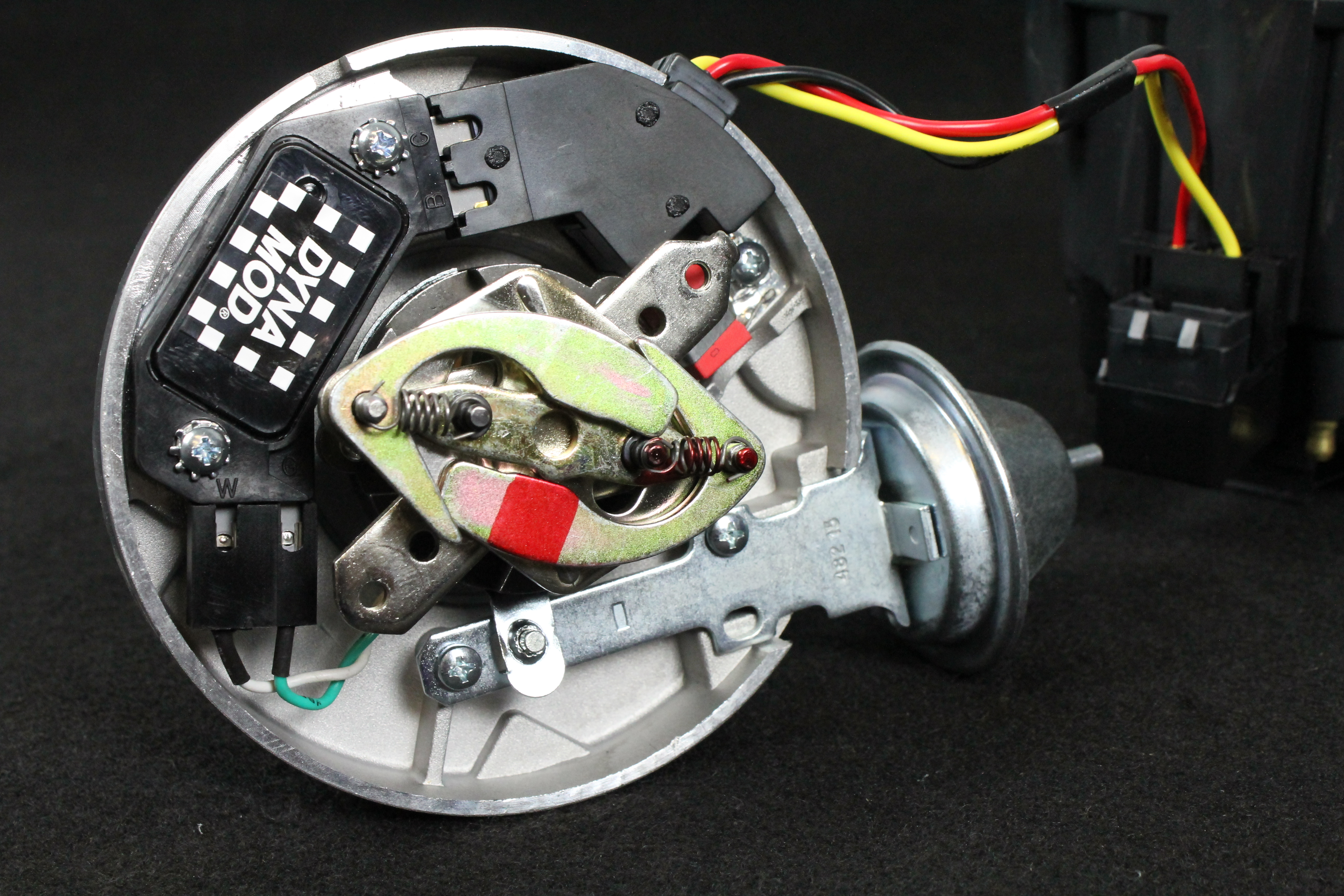

There are two main parts to this: mechanical advance and vacuum advance. Mechanical advance, also called centrifugal advance, is handled by the weights and springs under the distributor rotor. This setup determines how much the timing increases as RPMs rise and how fast it gets there. Initial advance, which is set at idle, adds to the mechanical advance to create total timing.

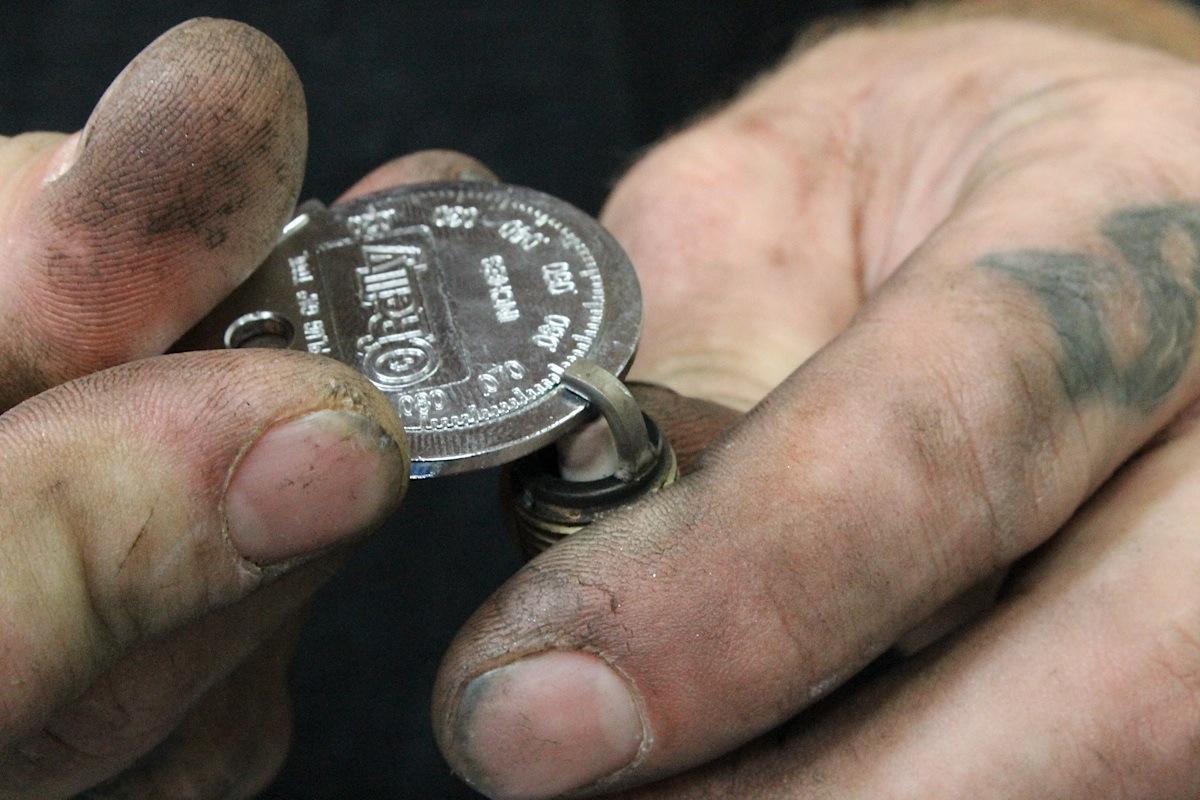

A commonly overlooked aspect of ignition timing is the spark plug itself. Gaping and reading your spark plugs can help you know where your engine needs to be with timing.

Then there’s the vacuum advance. This component adjusts timing based on engine load, pulling in extra advance when the engine is under a light load to improve efficiency. The vacuum advance doesn’t factor into total timing because it’s variable and load-dependent.

As Brian Caruth, office manager at Performance Distributors, explains, “Distributor timing is made through two key components — mechanical and vacuum advance. The mechanical advance is the primary component in the advance curve.” Understanding how both parts work together is essential to dialing in the right curve for your engine’s purpose.

Why Hot Rods Want An Aggressive Curve

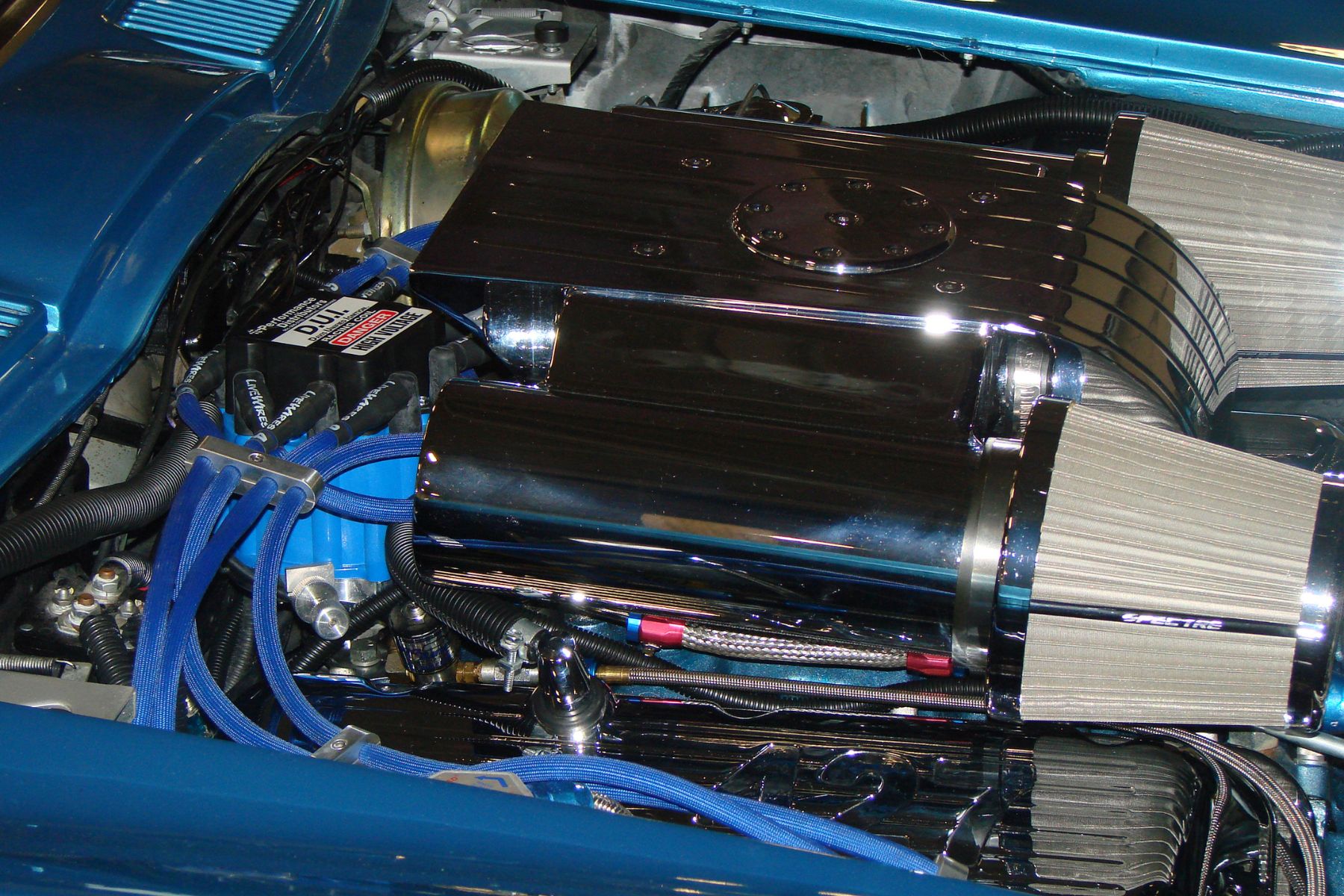

Hot rods are all about performance. They’re often built with high compression ratios, long-duration camshafts, big valves, and lightweight chassis. That kind of setup thrives on aggressive ignition timing.

A more aggressive advance curve means that timing starts advancing earlier in the RPM range and reaches full advance sooner. This rapid rise in timing helps maximize combustion pressure at the right point in the piston’s stroke, which translates to more torque and horsepower. It’s especially beneficial when you’re running a camshaft that bleeds off some compression at low RPMs. The extra timing helps light the fire when things start spinning.

“When building a project vehicle, having a consistent timing curve to match the needs of your engine is vital for the best performance,” says Caruth. “Not all timing curves are the same. Depending on the use of the vehicle and the build of the engine determine what type of advance curve will be necessary to optimize power, torque, and fuel economy.”

In a hot rod, the engine isn’t usually under sustained heavy load. That means there’s less risk of detonation from a quick advance curve. You’re free to push the limits and grab every ounce of performance you can.

Towing Requires A Softer Touch

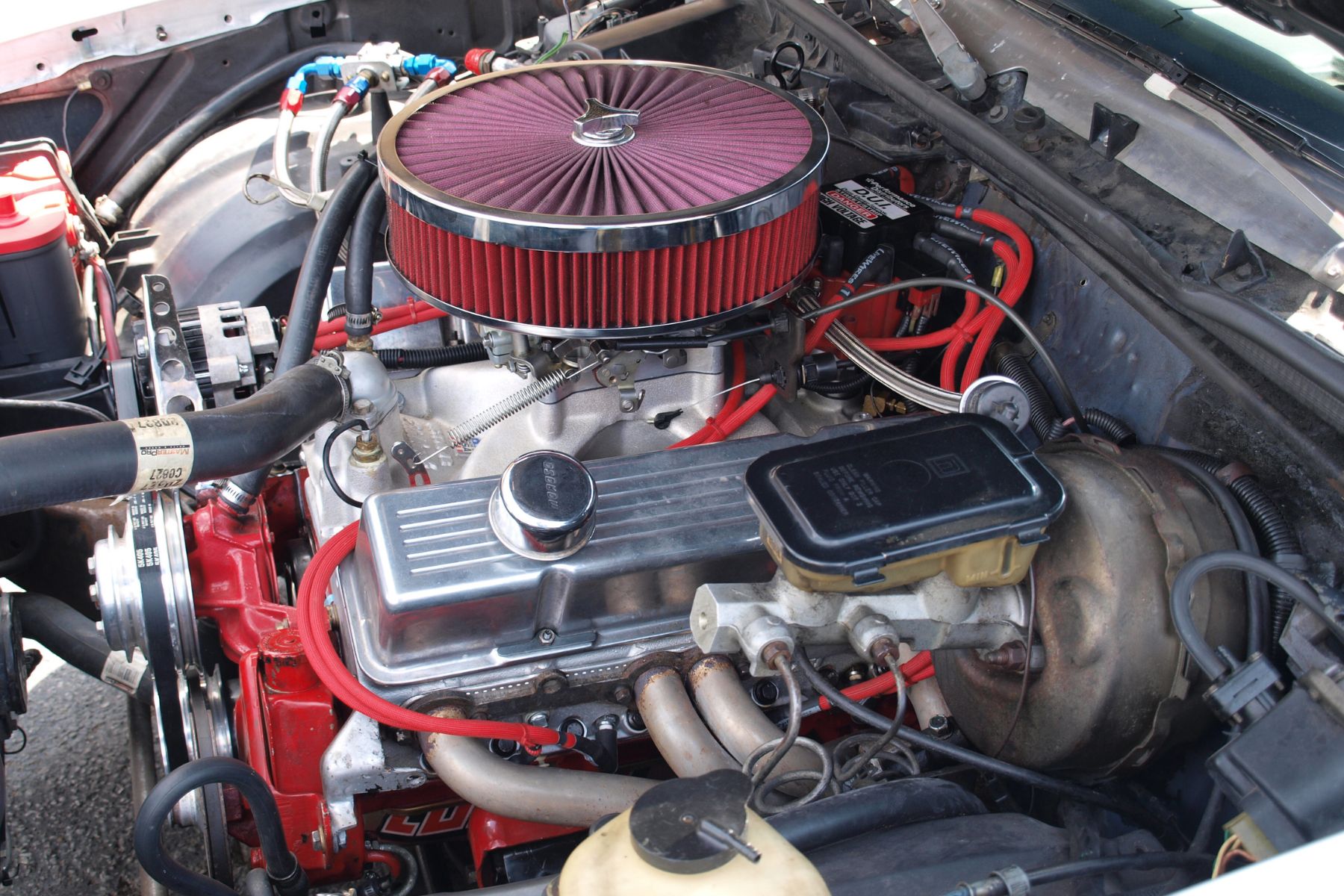

Towing applications are a different animal. When you’re hauling several thousand pounds, the engine is under constant load. That load increases cylinder pressure and temperature, which makes the engine much more prone to detonation if the spark comes too early.

“In towing applications, the timing curve would have to be quite the opposite of that in a vehicle built for speed,” Caruth explains. “With a substantial amount of weight tagging along, the advance has to be compensated with less timing at a slower rate. This is to prevent engine-damaging detonation and poor fuel mileage due to the excessive load the engine is under.”

In this case, you want a slower curve that adds timing gradually and reaches full advance later in the RPM range. It’s a trade-off. You won’t make as much power, but you’ll protect the engine and avoid catastrophic failure.

Detonation, often called spark knock, is what happens when the air-fuel mixture ignites too early or unevenly in the combustion chamber. The resulting shockwaves can crack pistons, ruin bearings, and blow head gaskets. Towing vehicles are especially vulnerable to this because of the load they’re pulling and the heat they generate.

By slowing the timing curve, you give the combustion process a chance to happen at the right moment, even under stress. You might not win any races, but your engine will thank you for it.

The Fuel Factor And Efficiency

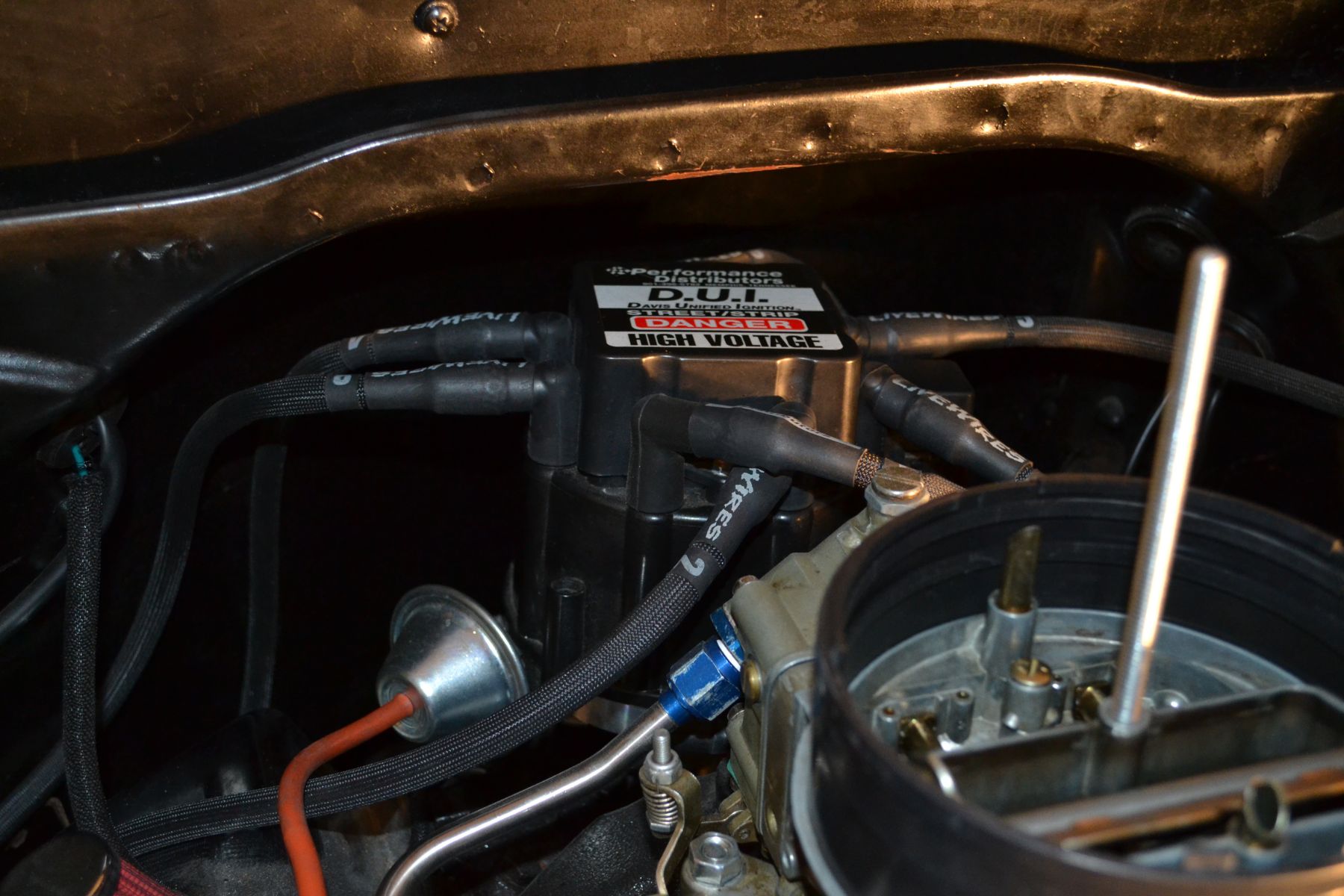

Fuel economy is another major factor in timing curve decisions. The right advance curve ensures that fuel is burned at the optimal point in the combustion cycle. Vacuum advance adds even more efficiency during light-throttle cruising, when the engine isn’t under heavy stress.

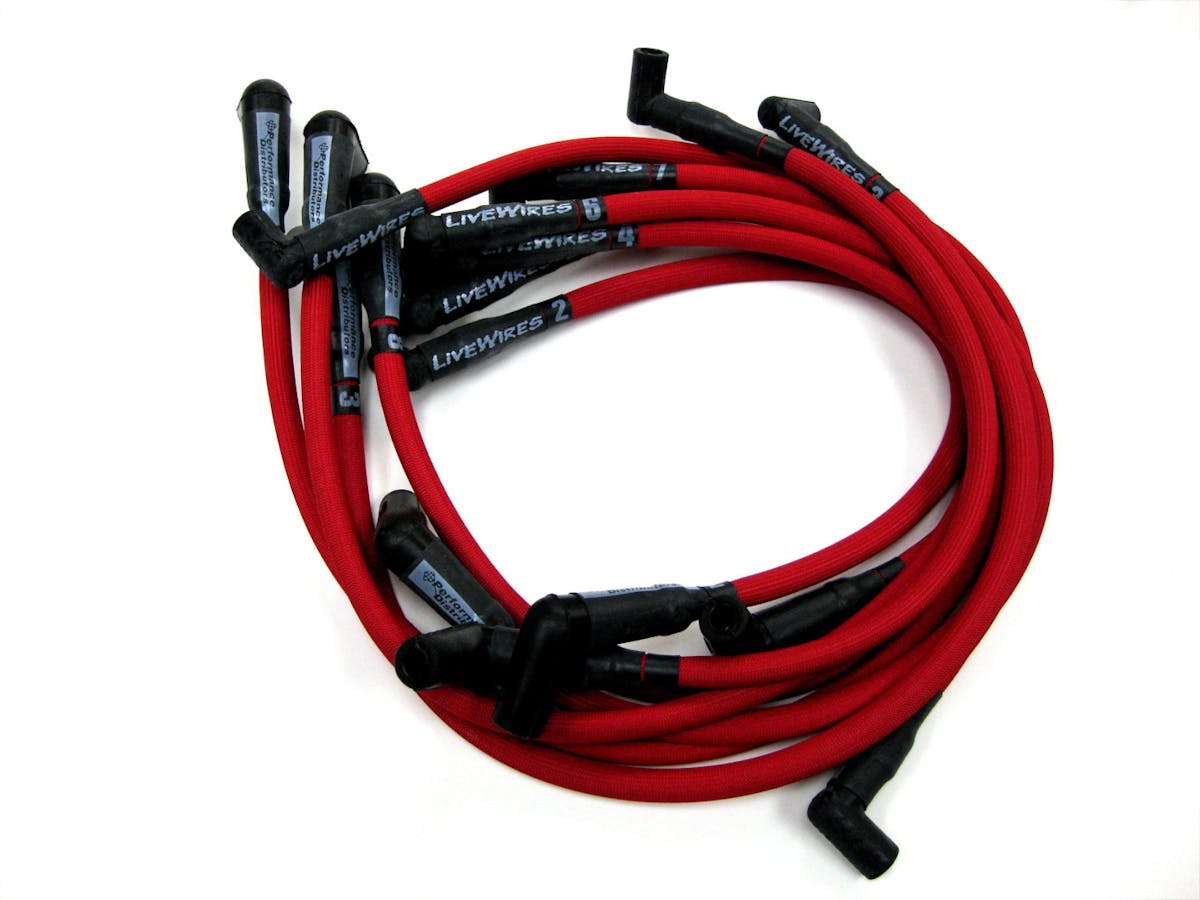

Another big tip for a healthy ignition system is a good set of spark plug wires. A set that can properly carry the spark energy and handle the temperatures under the hood will help keep your spark nice and healthy.

Too much timing at the wrong time can waste fuel and damage components. But the right curve brings in just enough advance to stretch every drop.

“Improper ignition timing can mean poor performance, reduced fuel efficiency, and potential engine failure by having the sparks occur too early or too late in the combustion process,” says Caruth.

Hot rods can tolerate a little waste because they’re not typically daily drivers. Towing vehicles, on the other hand, benefit from carefully calibrated timing to keep fuel usage in check over long hauls.

One Size Doesn’t Fit All

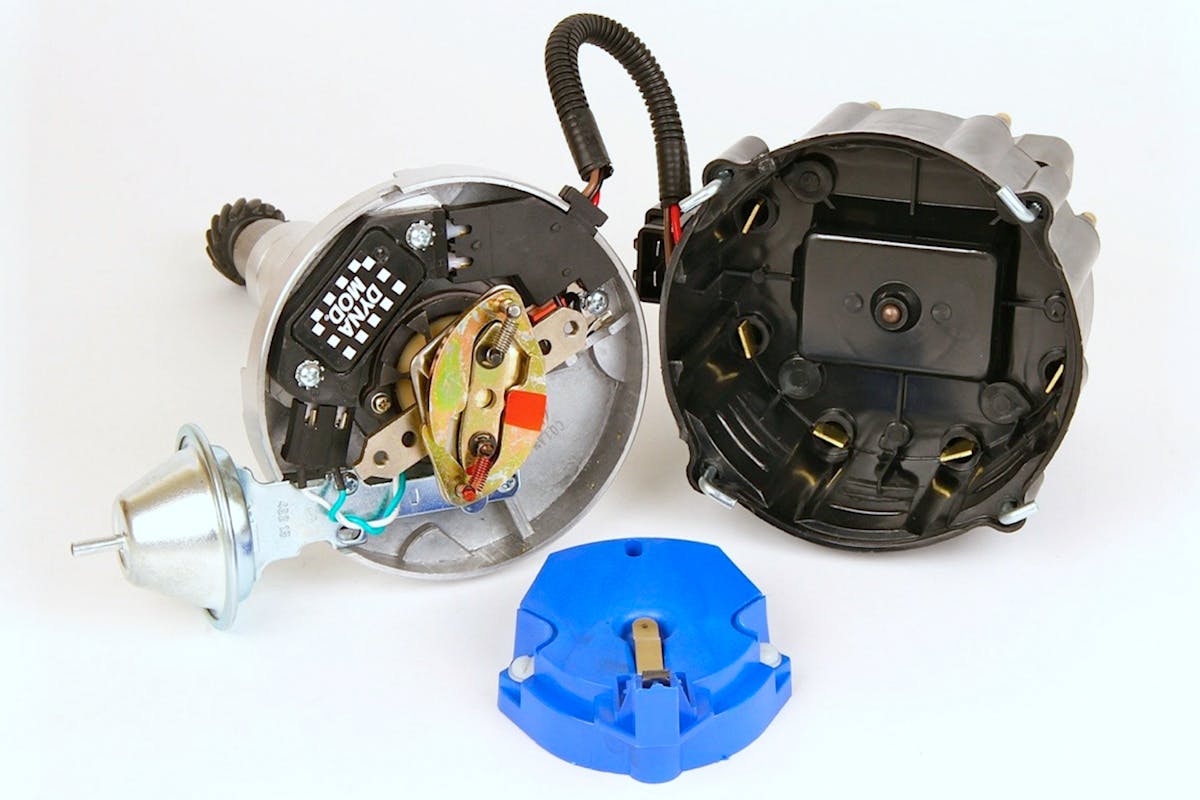

Performance Distributors takes a custom approach to these challenges. They tune each distributor’s mechanical weight and spring assembly based on the engine’s specs and purpose. That includes cubic inches, compression ratio, cam duration, valve lift, carburetor size, octane rating, and vehicle weight.

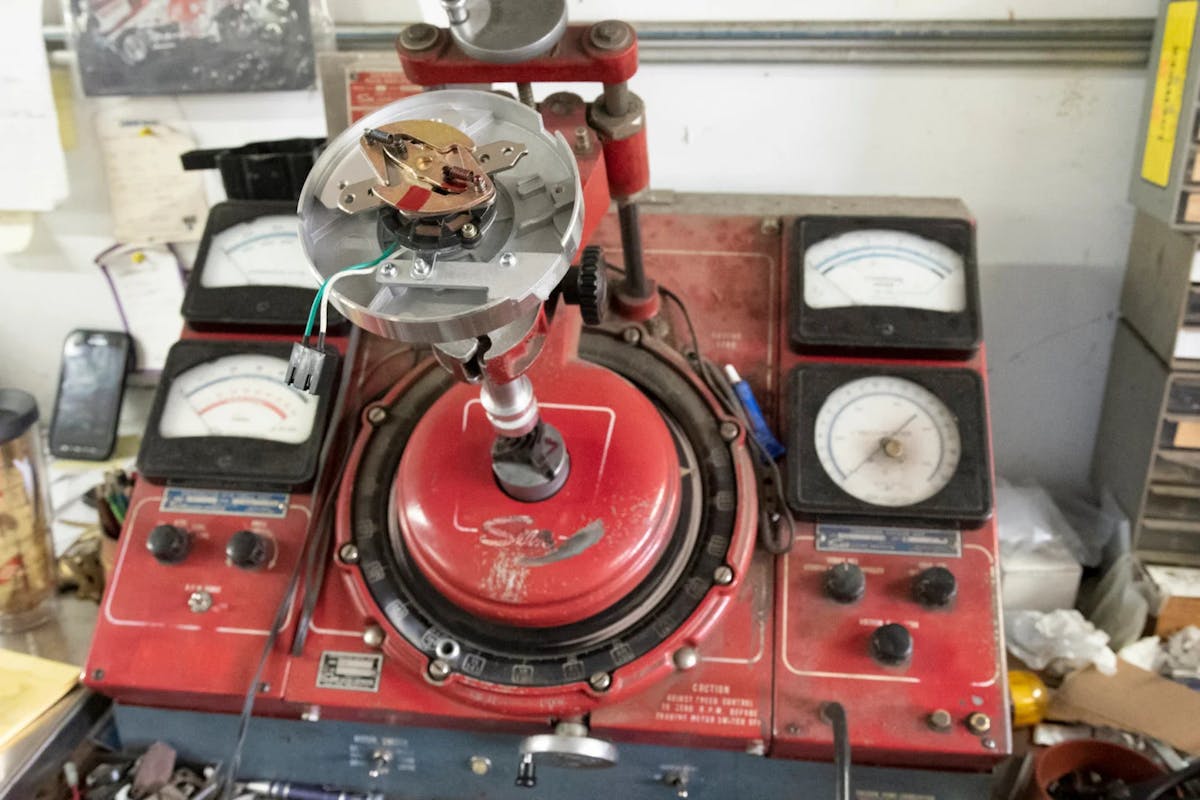

Distributor machines are making a comeback among restoration shops for fine-tuning ignition curves. Once forgotten, these tools allow precise adjustment of vacuum and centrifugal advance for better performance, mileage, and cooler running.

This allows them to provide a distributor that is ready to drop in and run without the customer needing to tinker with springs and weights. Caruth explains that their process eliminates trial and error. “Customers can install the distributor, set initial timing, plug in the vacuum advance, and they will be ready to run.” That means better performance, safer operation, and improved fuel economy without the guesswork.

Final Thoughts

Getting the ignition timing curve right is critical whether you’re chasing performance or durability. Hot rods benefit from early, aggressive curves that bring in timing fast. Towing applications need a more measured curve to reduce the risk of knock and improve longevity. For both, the vacuum advance adds an extra layer of efficiency when the engine is under a light load.

With companies like Performance Distributors offering custom-tailored solutions, you don’t have to gamble. Just send them your engine specs, and they’ll handle the curve. Your engine — and your fuel budget — will thank you.
