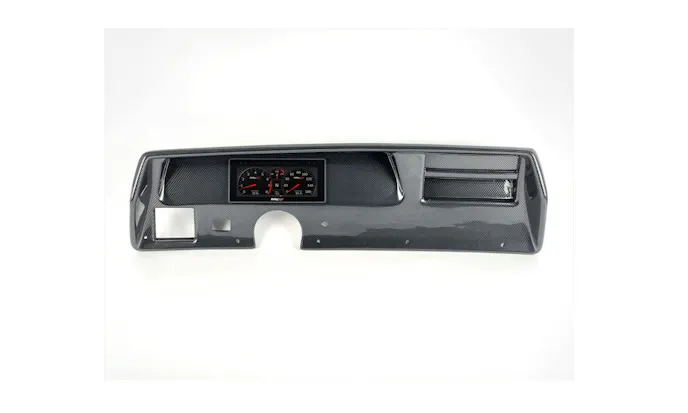

Classic Dash Releases 1970-72 Chevelle SS Holley 6.86″ Pro Dash

New from Classic Dash – the 1970-72 Chevelle SS Holley 6.86″ Pro Dash. This dash is completely customizable for use in a variety of motorsports applications. See more details below.

Official Release:

The 6.86″ Pro Dash is completely customizable for use in a variety of motorsports applications. It features a 6.86″ 1280×480 resolution low glare, high brightness, high contrast, full-color capacitive touch screen for easy viewing even in sun, plug-and-play connection to all Holley EFI systems as well as a weather-resistant aluminum housing featuring flexible mounting options.

Monitor the power of your Holley EFI system at a glance! Holley EFI 6.86″ Pro Dash includes everything needed for installation! The Holley EFI 6.86″ Pro Dash also features a plethora of Input and Outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? We still have you covered, these inputs are configurable, allowing you to utilize different sensor scaling calibrations!

The Pro Dash also features two dedicated speed inputs, for RPM, driveshaft speed, or any other Hall-effect speed input. Need more outputs? The Pro Dash contains four ground-switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch, or an electric water pump. We have also integrated a 10-LED programmable shift light into the bezel of the dash and added four optional LED’s that can be programmed for virtually anything, such as fuel pressure or oil pressure warning indicators, or a target boost indicator, the options are almost endless.

Features:

  • Plug-and-play Display support for Dominator, HP, Terminator X and Sniper EFI
  • Integrated a 10-LED Programmable shift light w/ four-LED warning indicators for other sensor inputs.
  • Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
  • 10 default background skins pre-loaded with unlimited options for importing custom layouts
  • Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
  • Virtual switch panel eliminates the need for external toggle switches
  • Manual or auto-brightness features for easy viewing day or night
  • Built-in GPS with odometer function (antenna included)
  • On-screen datalog playback features allow you to review vital run information
  • Expandable storage via USB
  • No stylus required, capacitive touch, just like your smartphone.
  • User-definable channel alarms and warnings
  • 4x 10-32 mounting holes for surface or flush mounting, with high-quality hardware included!
  • Includes everything needed for installation!
  • USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts
  • Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
  • Input and output functionality for 13 multi-configurable inputs and four ground-switched outputs.
  • User-defined alarms for any input
  • Upgradable with future software enhancements
  • Viewing area is 6.86″ on the diagonal
  • Dash weight – 1.2 Lbs
  • Real-time ECU tuning – HP/Dominator ECUs only
