New Ultra Pro Roller Lifters Released for Chevys by Crane Cams

Large journal camshafts can be problematic for oil distribution when installed in Chevrolets. Crane Cams has come up with a solution to this problem with their new Ultra Pro Roller lifters for a variety of Chevy V8s.

Official Release:

New Crane Cams Ultra Pro Roller lifters for Chevrolet 262-400 V8’s and Chevrolet 396-454-502 V8’s, with camshafts having 55mm and 60mm bearing journals

When installing large journal camshafts into Chevrolet engines that have conventional lifter oil gallery dimensions, the lifters are now positioned higher in the lifter bore, potentially causing oil distribution problems.

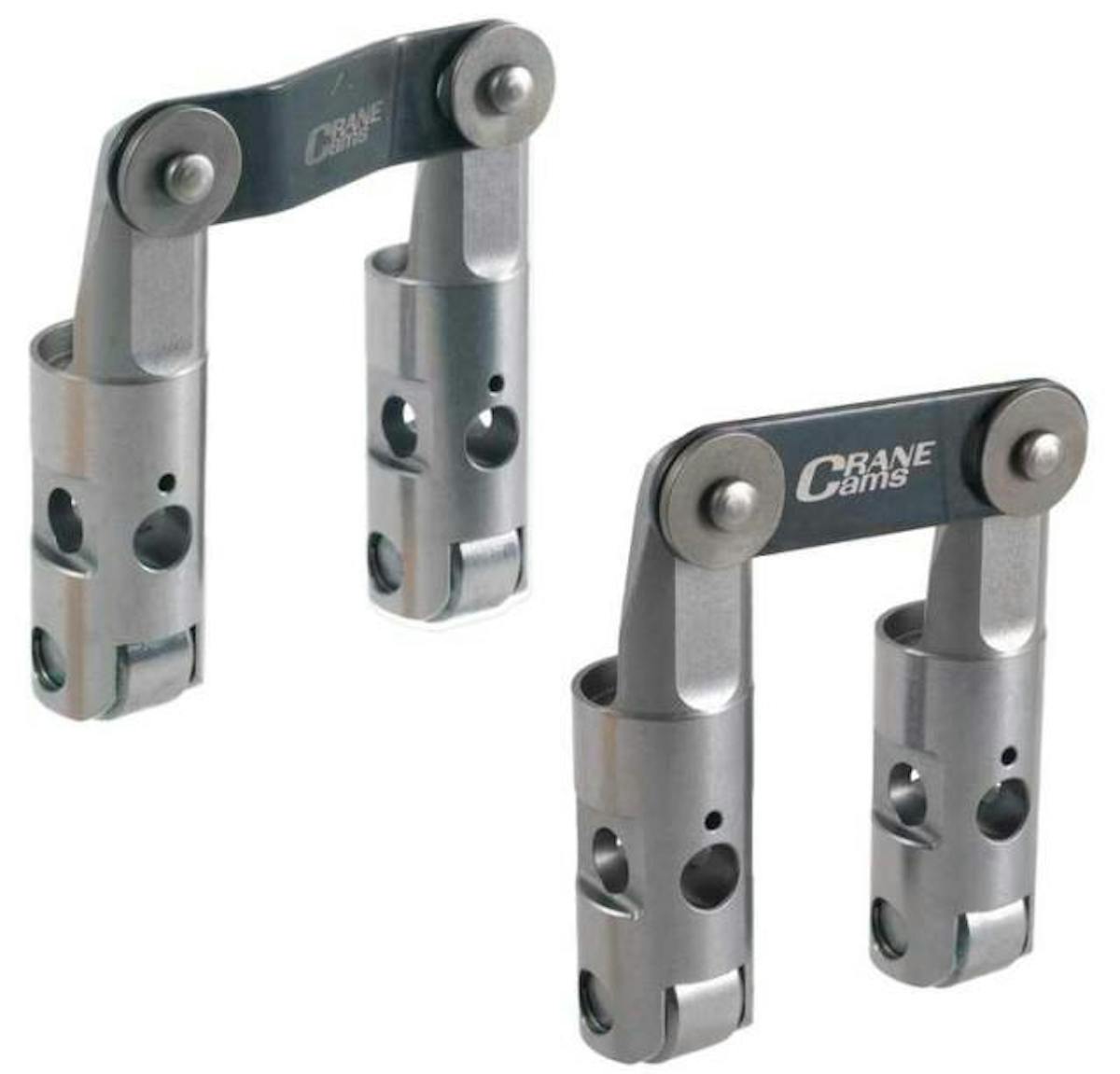

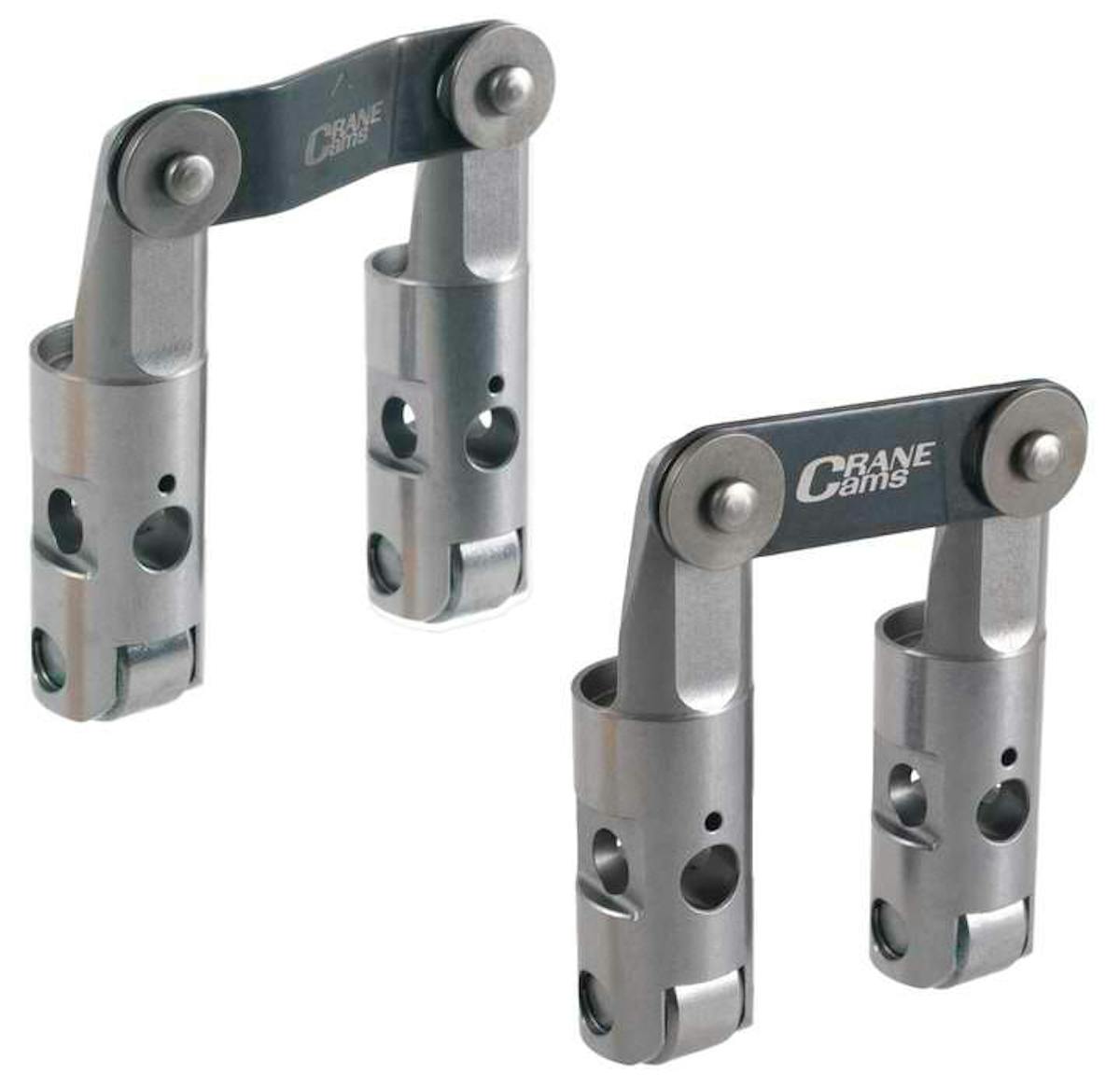

Crane Cams now offers a new family of exclusive Ultra Pro lifters designed specifically for these applications, relocating the oil passages in the lifter bodies for proper oil flow.

These lifters feature:

• One piece, carburized 8620 steel, surface-finished bodies
• Heat treated steel vertical locking bars attached with our Monel pin and flange assemblies
• Oil pressure fed to the wheel, and Bearing Focused Oiling to the needles and axles.
• Standard height pushrod seats.

Part #                    Application

11576-16 Chevrolet 55-00 262-400cu.in .842” diameter, centered pushrod seats, .750” wheel diameter

11577-16 Chevrolet 55-00 262-400cu.in. .842” diameter,.180” offset left & right intake pushrod seats, .750” wheel diameter

11578-16 Chevrolet 55-00 262-400cu.in. .904” diameter, centered pushrod seats,.815” wheel diameter

11579-16 Chevrolet 55-00 262-400cu.in. .904” diameter,.210” offset left & right intake pushrod seats,.815” wheel diameter

13576-16 Chevrolet 65-00 396-454-502cu.in. .842” diameter, centered pushrod seats, .750” wheel diameter

13577-16 Chevrolet 65-00 396-454-502cu.in. .842” diameter,.180” offset left & right intake pushrod seats,.750” wheel diameter

13578-16 Chevrolet 65-00 396-454-502cu.in. .904” diameter, centered pushrod seats, .815” wheel diameter

13579-16 Chevrolet 65-00 396-454-502cu.in. .904” diameter,.210” offset left & right intake pushrod seats, .815” wheel diameter
